The Reliable Sealing Solution for Your Industry
Are you seeking a reliable and durable sealing solution for your industrial applications? Look no further than Spiral Wound Gaskets! Spiral wound gasket offer exceptional resistance to high temperatures and pressures, ensuring a secure seal for various types of fluid, these gaskets have become a main material in the industrial sector.
In Depth Look at Spiral Wound Gasket
Spiral wound gaskets are a type of metallic gasket specifically designed for use on flanges, valves, and other sealing applications. These gaskets comprise a helically wound metal strip with a V or W shape, combined with a flexible filler material. The metal winding provides mechanical strength and pressure resistance, while the filler ensures a tight seal and prevents leakage.
Advantages of Spiral Wound Gaskets
- Extreme Temperature Resistance : Design to withstand extreme temperatures and pressures, making them ideal for harsh working environments.
- Perfect Seal: The combination of metal winding and flexible filler material creates a tight seal and prevents leakage.
- High Flexibility: Available in various types and sizes to meet diverse application needs.
- Superior Durability: Made from high-quality materials, ensuring a long service life and reliable performance.
- Easy Installation: Simple installation and removal process, minimizing production downtime.
Available Types of Spiral Wound Gaskets

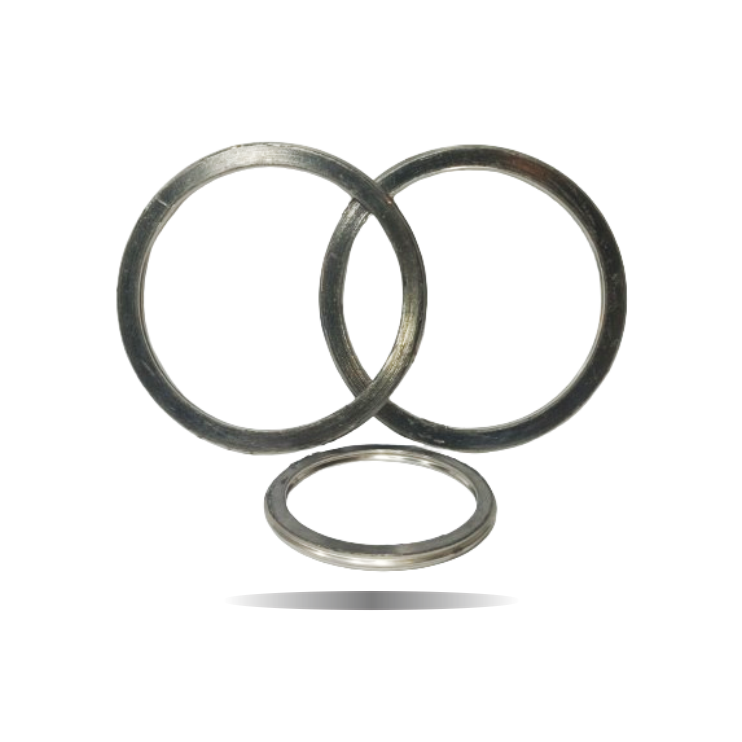

Style B gasket consists of sealing element only. It comes with some additional layers of winding strip when used in tongue and groove and male/female flanges. It is available in various shapes, including oval, obround, and diamond.
This type of gasket consists of outer ring and sealing element. It is most suitable for RF and FF flanges. We made it accordingly standards to guarantee its quality.
The standard BI style consists of an inner ring and a sealing element. This ring is heat and corrosion resistant. This ring is also available in various shapes such as oval, obround, diamond, etc.
The standard OBI style consists of outer ring, sealing element, and inner ring. The outer ring is color coded based on the material that constructs it. It is heat and corrosion resistant due to its extra inner ring fitted that provides an additional compressions stop.
Spiral Wound Gasket Components
Spiral wound gaskets consist of three main components, each made from different materials to provide optimal function:
1. Metal Winding
- Materials:*
- Stainless Steel: The most common choice due to its corrosion resistance and extreme temperatures. Commonly used types include SS304, SS316, and SS316L.
- Description: The metal winding forms the main structure of the gasket, providing mechanical strength and pressure resistance. The winding shape is usually V or W, which clamp the filler material.
2. Filler Material
- Materials:*
- Graphite: Resistant to high temperatures and has good compression capabilities, suitable for applications with extreme temperatures and pressure fluctuations.
- PTFE (Polytetrafluoroethylene) : Chemically resistant and has a low coefficient of friction, ideal for applications with corrosive fluids.
- Ceramic Fiber: Withstands very high temperatures and has good thermal insulation properties.
- MICA : is a group of silicate minerals that have a layered structure and Some common types of mica are muscovite and phlogopite. Mica has good heat resistance, high electrical insulation, and is chemically stable.
- Other Non-Asbestos Materials : Other materials can also be used as filler materials, depending on the application and working conditions.
- Description: The filler material acts as the primary seal, filling small gaps on the flange surface and preventing leakage. The filler material should be selected according to the type of fluid, temperature, and working pressure.
3. Ring
- Materials:*
- Carbon Steel: used for the inner ring or outer ring due to its strength and economical price.
- Stainless Steel: Used for the inner ring or outer ring if better corrosion resistance is required.
- Description: The ring serves to provide additional stability to the gasket and protect the winding from damage. The outer ring also helps center the gasket when installed on the flange.
Material Selection
The selection of spiral wound gasket materials is crucial to ensure the performance and reliability of the gasket in a particular application. Factors to consider include:
- Type of Fluid: The fluid to be sealed (corrosive, flammable, etc.)
- Operating Temperature: The maximum and minimum operating temperatures.
- Operating Pressure: The maximum operating pressure.
- Environmental Conditions: The environment where the gasket will be used (acidic, alkaline, extreme temperatures, etc.)
By understanding the various materials used in making spiral wound gaskets and the key factor in material selection, you can choose the right type for your application and ensure optimal sealing performance.
High-Quality Materials for Optimal Performance
We utilize high-quality materials to ensure optimal performance of our spiral wound gaskets:
- Metal Winding : Stainless steel (SS304, SS316, SS316L).
- Filler Material : Graphite, PTFE, Ceramic & MICA.
- Rings : Carbon steel, & stainless steel.
Application For Industries
Oil and Gas Industry :
In the oil and gas industry, spiral wound gaskets are used in various equipment such as:
- Pipes and Flanges : Sealing pipe and flange connections to prevent leaks of oil, gas, or drilling fluids.
- Valves : Used in valves to ensure tight closure and prevent fluid leakage.
- Pumps : Sealing pump components to prevent leaks and maintain efficiency.
- Heat Exchangers : Used in heat exchangers to prevent leaks of coolant or processed fluids.
Petrochemical Industry :
Spiral wound gaskets are also widely used in the petrochemical industry, particularly in :
- Reactors : Sealing reactors to prevent leaks of hazardous chemicals.
- Storage Tanks : Used in storage tanks to prevent leaks of chemicals or petrochemical products.
- Piping Systems : Sealing pipe joints in piping systems to prevent chemical leaks.
Chemical Industry :
In the chemical industry, spiral wound gaskets play an important role in :
- Chemical Processing Equipment : Sealing various chemical processing equipment such as reactors, mixers, and tanks.
- Laboratory Equipment : Used in laboratory equipment to ensure tight seals and prevent contamination.
Power Generation Industry :
Spiral wound gaskets are used in the power plant industry for :
- Boilers : Sealing boiler components to prevent leaks of steam or water.
- Turbines : Used in turbines to ensure tight seals and prevent steam leaks.
- Generators : Sealing generator components to prevent coolant leaks.
Food and Beverage Industry :
In the food and beverage industry, spiral wound gaskets are used in :
- Food Processing Equipment : Sealing food processing equipment to ensure hygiene and prevent contamination.
- Packaging Equipment : Used in packaging equipment to ensure tight seals and maintain product quality.
Other Industries :
In addition to the above industries, spiral wound gaskets are also used in various other industries such as :
- Pharmaceutical : In drug production and packaging equipment.
- Water Treatment : In water treatment systems to prevent leaks.
- Pulp and Paper : In paper and pulp production equipment.
Final Thoughts
Spiral wound gaskets are a versatile and reliable sealing solution for a wide range of industrial applications. Their ability to withstand extreme temperatures and pressures, as well as their ability to seal various types of fluids, makes spiral wound gasket a primary choice in various industrial sectors.
Why Choose Us as Your Partner?
We are a trusted spiral wound gasket provider with years of experience in the industry. We offer a wide range of spiral wound gasket types and sizes to meet your unique needs. Our products are made from high-quality materials and manufactured to stringent standards to ensure optimal performance and customer satisfaction.
Contact Us Now!
Feel free to contact expert team if you have any questions or wish to order spiral wound gaskets. We are ready to assist you in finding the right sealing solution for your application.
We hope this article provides valuable insights, If you have any further questions, please do not hesitate to contact us.
